Turn off the power
to your Cable/DSL modem and existing
router (unplug power cord).
2. Connect the Ethernet cable, included
in the Talk Motion package, from the
third party routerís Ethernet port to
port on the back of the Talk Motion
Phone Adapter (Grandstream).
3. Connect a standard analog telephone
to the Phone 1 port on the back of the
Talk Motion Phone Adapter (do
not use Phone 2 port on the side of the
adapter); using a standard
phone line. Please note that any phone
designed for residential or small
business use is an analog phone and will
4. Turn on the Cable/DSL modem and
existing router. Wait until it is
5. Connect the provided power cable to
the DC5V connection on the back of the
Talk Motion Phone Adapter (Grandstream)
and connect other end to any standard
home power outlet.
6. Allow one minute for the Talk Motion
Phone Adapter (Grandstream) to fully
synchronize to the Talk Motion network.
The LED light on top of the Talk Motion
Phone Adapter should NOT be red, this
indicates an error. If you're seeing a
red light or have any problems
connecting your phone please see

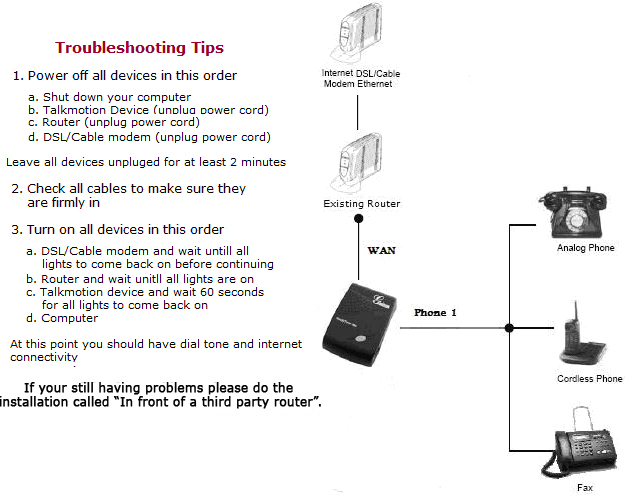

Troubleshooting tips below.
You should now be successfully connected
to the Talk Motion network. Simply pick
up your phone and confirm you have a
